115V/250V YB11-B1 10A IEC Inlet Filter With Fuse Single Phase EMI
Sokcet Filter
IEC Inlet EMI Filter:
YB11B1-10A-Q is the IEC Inlet EMI filter. It is a compact and easy to install filter that plugs directly into
an AC power outlet. Our design standards are in accordance with IEC60601, and filters
have passed the UL,CQC,CE,TUV certification. Suitable for 110V/250V voltage, the current can be selected 1A, 3A,
6A, 8A, 10A.
Features Of IEC Inlet EMI Filter:
1. High performance and high attenuation power filters with IEC 320
socket
2. Wide frequency range :IEC inlet EMI filters are effective in a wide
frequency range, usually from 150KHz to 30MHz.
3. Low leakage current: The lowest leakage current of this IEC Inlet
EMI Filter is 0.05mA.
4. Customized products according to customer's requirements.
Application Of IEC Inlet Power Filter:
1. Specially designed for LCD and PDP TV,medical
applications,general electrical appliances.
2. Small and medium-sized machines and household equipment.
3. Test and measurement equipment.
4. Medical equipment
YB-B Inlet Filter Specification:
| Item | YB-B IEC Inlet Filter |
| Model | YB11B1-6A-Q |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 150K-30MHZ |
| Insertion Loss | 10~30dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115VAC~250VAC |
| Rated Current | 1A 3A 6A 8A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 500VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/60HZ 0.4mA Max 250VAV/50HZ 0.8mA Max |
Naming Rule:
| YB | 11 | B1 | - | 6A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | B1 | | 3A :3 amp | | Q:fast-on tab 250 |
| | | | | 6A :6 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11B1 | B1 | 1 | Fast-on terminal |
| YB11B1 | B1 | 3 |
| YB11B1 | B1 | 6 | Wire |
| YB11B1 | B1 | 8 |
| YB11B1 | B1 | 10 | Solder Lug Terminals |
YB11B1-6A-Q EMI Filter Picture:
Electrical Schematic:

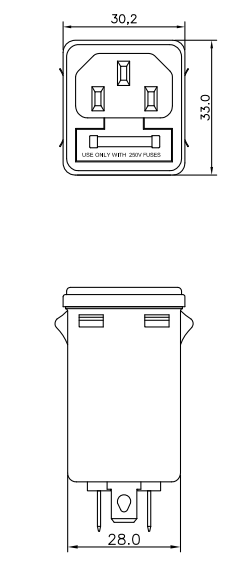

Mechanical Dimension(Unit: mm)
YB11 Line Insertion Loss:
