Dual Stage Single Phase Filter 100A High Current Power Line Filter CE Certification

Brand Name : YBX

Model Number : YB21F4-100A-S

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Piece/Pieces per Month Ac 220V General Purpose Noise Filter

Delivery Time : 20-25 days

Packaging Details : 56.5*28.5*22.5cm

Product name : F Series Single Phase Filter

Rated current : 1A-100A

Frequency : 50/60HZ

Brand : YBX

Certificate : cUL TUV CQC CE ROHS

Voltage : 110V/250VAC

Contact Now

Dual Stage Single Phase Filter 100A High Current Power Line Filter CE Certification

YB21F4-100A-S Two-Stage Single Phase Filter:

YB21F4-100A-S is the Two-Stage Power Line Filter. According to different equipment to choose the appropriate output mode, its connection mode can be selected fast-on terminal, M4 screw, terminal block. The maximum rated current up to 100 amps. Designed with both common mode and differential mode performing high noise suppression.

Features Of Two Stage Emi Filter:

-- Designed for enhanced filtering

-- Various terminal options: faston/screw/terminal

-- Rated currents from 1 to 100A

-- Excellent differential and common-mode attenuation

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment

Filter Specification:

Item	Two-stage Power Line Filter
Model	YB21F4-100A-S
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	150KHZ-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max
MOQ	100pcs

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB21F4-10A	F4	10	Fast-on terminal
YB21F4-30A	F4	30	Fast-on terminal
YB11F4-50A	F4	50	Wire
YB11F4-60A	F4	60	Wire
YB11F4-80A	F4	80	M4 Screw
YB11F4-100A	F4	100	M4 Screw

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Naming Rule:

YB	21	F4	-	100A	-	S
∣	∣	∣		∣		∣
Single Phase	Circuit	Dimension		Current		Output Connection
	21:21 circuit	F4		30A :30 amp		Q:fast-on tab 250
				50A :50 amp		S:M4 Screw
				100A :100 amp		T:terminal

YB21F4-100A-S Product Picture:

Electrical Schematic:

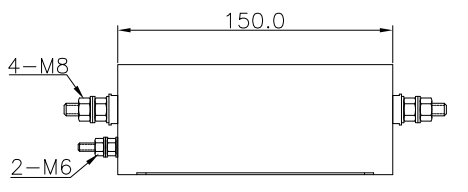

Mechanical Dimension(Unit: mm)

Case	E3	E4	D1	D2	D3	D4	D5	F1	F2	F3	F4	Tolerances

A	32	44.5	51	51	63	63	73	72	98	120	150	±1

B	46	50.5	33	51	51	51	56	65	80	100	105	±1

C	22.5	30	29	21	29	38	44.5	39	41	50	60	±1

D	54	61.5	60	63	75	75	87	75	95	115	120	±0.15

E	62	70.5	68	72	85	85	98	45	50	80	90	±1

F	24	28	20	27	25	27	30	35	50	60	60	±0.5

G	12.5	10.5	10	10	10	15.5	16	22	24	26	35	±0.5

H	4.5	6	4.5	4.5	5	4.5	4.5	4.2	4.2	4*6	4*6	±0.15

I		4.5						4.2*6.2	4.2*6.2	4*6	4*6	±0.15

J								M4/M6	M4/M6	M4/M6	M4/M6

K	6.3*0.8	6.3*0.8	UL 1015	6.3*0.8	6.3*0.8	6.3*0.8	6.3*0.8	M4	M4	M4	M4	±0.15

L								35	50	60	60	±2

Dual Stage Single Phase Filter 100A High Current Power Line Filter CE Certification

Our Certificates:
