30A 440V Three Phase EMI Filter Inverter Power Filter Bolts Output
1.Product Parameters:
| Item name | Three Phase Motor EMI Filter |
| Product series | YX81G1-30A-S |
| Maximum voltage | 520VAC,50/60Hz |
| Operating frequency | 50/ 60Hz |
| Rated current | 1~200A@50°C |
| Withstand voltage | L-N 1450VDC | L/N-G 4000VAC/2250VDC |
| Climate category | -25°C~+85°C(25/85/21) |
| Design standard | UL1283, CSA C22.2 No.8, IEC/EN 60939, CQC GB 15288/GB 15287-2008 |
| Fire rating | UL 94V-0 |
| Applications | Three phase motors, UPS/switching power supplies, industrial
automation equipment |
| Related Certifications | UL/cUL, ENEC, CE, RoHS |
Product Picture:

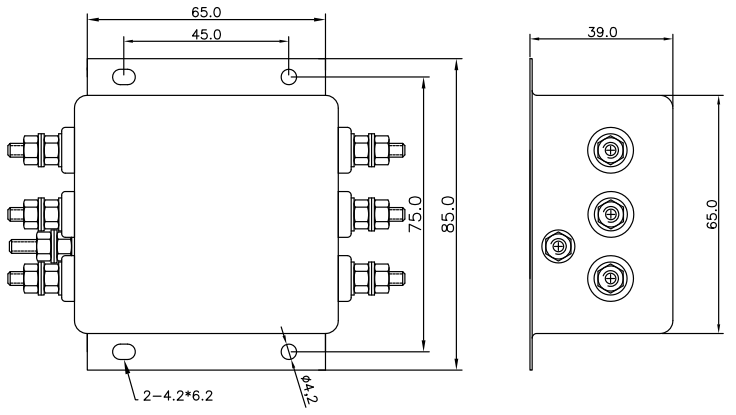

Physical Dimensional:
Electrical schematic:
2.Typical Application
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
3.Why choose us?
1.After years of efforts of the company's personnel, products
successively obtained the cUL,TUV,CQC, CE, ROSH certifications.
2.We have a professional R&D team; our aims is we won't let
customers spend any extra money!
3.National high-tech enterprises, brand assurance, reliable
quality, and we have the relevant product certifications.
4.We cooperate with top scientific research laboratories to provide
free EMC rectification technical support, samples; and free
conduction test.
5.Automation technology, scale production, great price,excellent,
service, fast delivery! Free replacement within three months, free
maintenance within six years, life-long maintenance!
4.Certification
We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other
certifications.
5.FAQ
Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us
with the samples or drawings and specification.
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production
experience.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for
samples; 10 to 15 for small orders, 15-25days for mass production
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order. Please contact
us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before
shipment, and a balance against shipment. And we also accept the
L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC,
REACH, etc.
