YX83G1-6A Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers

Shenzhen Yanbixin Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

YX83G1-6A Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers

  • 1
  • 2

Brand Name : YBX

Model Number : YX83G1-6A-S

Certification : UL, CE, CQC, ENEC

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Supply Ability : 2000 Piece/Pieces per Month

Delivery Time : 15-25 days

Packaging Details : 0.45*0.23*0.16*1 m

Name : YX83 Three Phase Filter

Rated voltage : 250/440VAC

Rated currents : 10A 30A 40A 50A 60A 80A

Input Impedance : 50Ω

Insertion loss : 30-100dB

Transfer function : Transfer function

Application : Three Phase Power System

Contact Now

YX83G1-6A-S Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers



3-phase 3-line EMI filter with high-frequency attenuation for Office and High power office equipment



Description Of Three Phase Filter



YX83G1-6A-Q is the Three Phase EMI Filter. Its connection mode is fast-on terminal. The maximum rated current up to 10 amps are designed with both common mode and differential mode performing high noise suppression,two-stage filtering,good filtering effect.



Features:



1. Good noise attenuation in both forward and reverse directions for common mode and normal mode.
2. High reliability designed for industrial equipment usage with 3-Phase 3-Wire and 3-Phase 4-Wire.
3. The rated current can be offered from 10 to 100 amps.
4. Various screw terminals output for different amps is designed for easy installation.
5. Custom-specific versions are available on request.



Typical Applications:



1. Applications requiring high-frequency attenuation

2. High power office equipment

3. Office and data processing equipment



Filter Selection Table:



Part No.CaseRated Currents (A)Output Connections
YX83G1-6AG16Fast-on terminal
YX83G1-10AG110
YX83G1-15AG115Wire
YX83G1-20AG120
YX83G1-30AG130M4 screw

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg



Technical Specification:



ItemThree Phase EMI Filter
ModelYX83G1-6A-Q
Transfer FunctionLow Pass
Package TypeCarton
Nominal Center Frequency150K-30MHZ
Insertion Loss60~90dB
Input Impedance50Ω
Rated Voltage250V/440V
Rated Current1~30A
Environmental Temperature40°C
Temperature Range-25℃~+85℃
Operating Frequency50/60HZ
Line to Line1450VDC
Line to Ground2250VDC



Electrical Schematic:





Tabulates:





Model No.

Rated Current
@40°C
Terminal Options*Leakage current 440V/50HZRated Voltage(V)Operating Frequency(Hz)
YX83G1-6A Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers
YX93G2-3A3AQST<5.0mA250/440V50/60Hz
YX93G2-6A6AQST
YX93G2-10A10AQST
YX93G3-15A15AQST
YX93G3-20A20A-ST
YX93G3-25A25A-ST
YX93G3-30A30A-ST
YX93G5-40A40A-ST<10.0mA
YX93G5-50A50A-ST
YX93G4-60A60A-ST
YX93G4-70A70A-ST
YX93G4-80A80A-ST
YX93G4-100A100A-ST<20.0mA
YX93G4-130A130A-ST
YX93G6-150A150A-ST
YX93G6-200A200A-ST

*Q: Fast-on 6.35x0.8mm S: Screw lug T: Terminal block



Mechanical Dimension(mm):

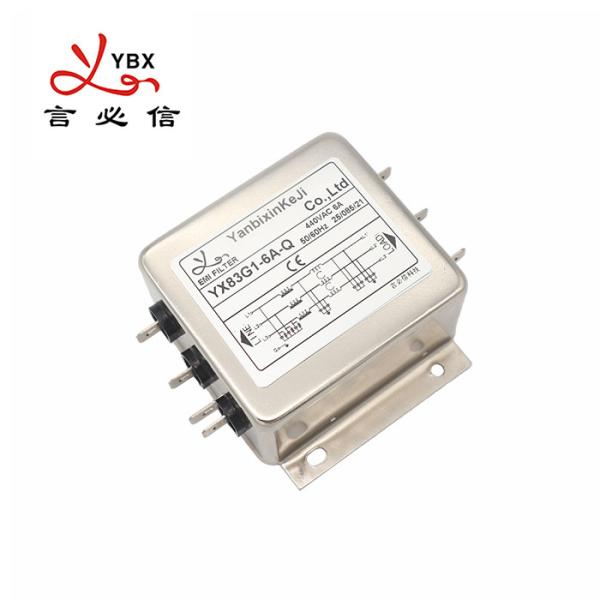

YX83G1-6A-Q Three Phase Filter Picture:



YX83G1-6A Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers



Insertion loss table(In 50ohm system according to IEC/CISPR No.17)



YX83G1-6A Three Phase Filter Fast-on Terminal Out EMI Filter 10A For Transformers
